Fiber Laser Pipe Cutting Machine

laser cutting machine

Machine Description

The fiber tube laser cutting machine is mainly for metal tube/pipe cutting, such as: carbon steel, stainless steel, iron,aluminum, copper etc. It’s have 200mm/ 300mm diameter. And it’s can used for cutting pipe and square tube. The machine use the high quality parts, Raycus/Max brand laser source, Raytools fiber laser head , Cypcut control system and Japan FUJI/Yaskawa servo motors and drives, high precision and speed, large torque, performance is stable and durable, ensure the high speed operation of the whole machine.

Share on facebook
Facebook
Share on twitter
Twitter
Share on linkedin
LinkedIn
Share on email
Email

Fiber Laser Pipe Cutting Machine Features

1. Famous brand laser
IPG laser/Raycus laser
IPG: The world’s number one fiber laser company with the highest reputation among end customers and the world’s number one technology capability.
2. Auto zoom laser cutting head
Laser head: use two-point centering adjustment.
Focusing: Driven by imported motor.
Protective lens: Drawer type installation.
The efficiency is improved significantly and the replacement is convenient.
3. Pneumatic chuck
Full-stroke clamping, no need to change the jaws; the bearing housing is integrated with the reducer and motor, which has high strength and strong stability; the gear is built-in, dustproof, high precision gear grinding, and low noise. It can cut all kinds of special-shaped pipes such as round pipe, square pipe, rectangular pipe, flat pipe, I-beam, channel steel, U-shaped pipe, etc.
4. Remaining material collection box
Collect the workpieces after cutting, which is convenient and quick. Dual-motor drive, high-precision rail surface processing, imported fiber laser
5. Three-chuck no tailing laser pipe cutting machine
The self-centering dual-power chuck guarantees the flatness and feeding accuracy of the longer pipe when clamped. The special high-pressure gas pipe slag removal device makes the inner wall smooth and clean after the pipe is cut without secondary treatment.
6. Simple operation
The operation of the control system is simple and easy to learn, the compatibility is more comprehensive, and the processing is more flexible and efficient.

Fiber Laser Pipe Cutting Machine Main Parts

Max.outside diameter of round tubes(mm)
20-210(Customized to 250)
Pipe thickness
Depends on the power
Cutting speed
Cutting speed: Max 0.8s/cut(Depending on material thickness)
“Y” axis single feeding length
1200mm
“Z” axis adjustment range
65mm
“W” axis adjustment range
360°
Machine repeat positioning accuracy
±0.05mm/1000mm
Machine positioning accuracy
±0.1mm
Machine idle speed
120m/min
Maximum acceleration
1.0G
Electricity demand
380V 50Hz(customizable)
Cutting accuracy
±0.1mm
Machine size
9340*1560*1615MM
Machine weight
8T
Power
500-8000w(Optional)
Accuracy
±0.1mm
Max . raw material length (mm)
≤6200
Max. finished part length (mm)
1200
Pipe remain length (mm)
180
Multi-funtional cutting
Mitre cut, rectangular, slot, square, circular, cold mouth, special profiles

Fiber Laser Pipe Cutting Machine Parts

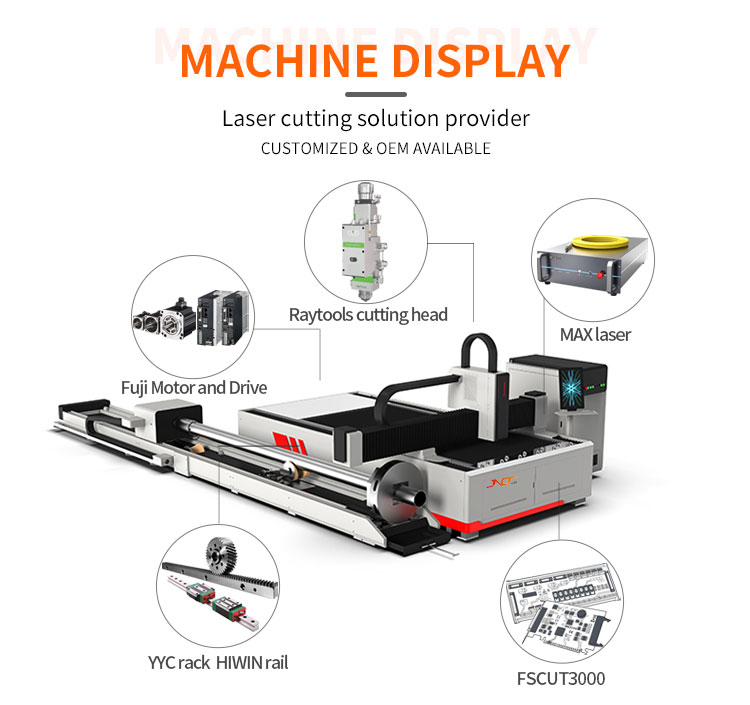

Switzerland Raytools laser head

*MAX laser source

*6m full automatically chuck tube cutting device
*French MOTOREDUCER motor reducer
*Japan FUJI servo motor & driver
*Japan SMC/Airtac pneumatic parts
*French Schneider electronic parts
*Automatic lubrication system
*Integrated cast aluminum beam
*Korea IKIO square rail
*Laser head automatically adjust system.
*Cypcut operation control system
*Smoke purify system
*Water cooling machine

fiber laser pipe cutting machine accessories

Fiber Laser Pipe Cutting Samples

Can meet the cutting of all kinds of pipes and special-shaped pipes
Round tube, square tube, rectangular tube, flat tube, U shape
Cutting of various types of pipes such as pipes.
samples

Packaging & Shipping

1. Anti-collision package edge: All parts of themachine are covered with some soft materials, mainly the use of pearl wool.

2. Fumigation wooden box: Our wooden box for machine  is fumigated, do not need to check the wood, saving the transport time.

3. Whole film packaging machine: Avoid all damage that may occur during delivery from the machine then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.

4. Wooden box at the bottom of a solid iron socket for easy handling.

fiber laser pipe cutting machine ship
